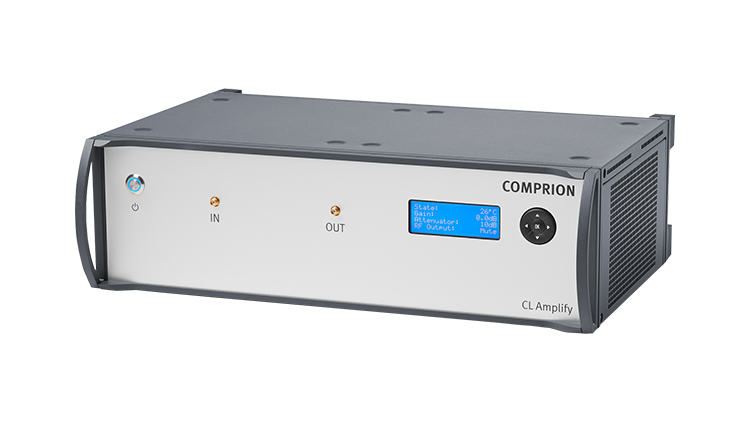

CL Amplify

RF Amplifier required for ISO 10373-6 and analog EMVCo tests

  • 100 W class A
  • USB-controlled:
    -Attenuation on/off
    -Gain control
    -Temperature control
  • Mountable in 19" rack
Download Brochure
  • Overview

RF Amplifier for Analog Testing

The CL Amplify is specifically designed for contactless analog testing. It is a vital component of COMPRION's analog test solutions for NFC Forum, EMVCo, and ISO/IEC 10373-6. With high temperature stability, low operating noise, and comprehensive remote control capabilities, it targets the design and development phase of NFC-enabled devices. Benefiting from running the identical software as the conformance test tools, the CL Amplify is exceptionally well-suited for facilitating and expediting product certification processes.



COMPRION Test Solutions Using CL Amplify

NFC Forum Test Solutions

Automated test solutions for NFC Forum-approved compliance testing.

Read more

EMVCo L1 Test Solutions

Test solutions for EMVCo qualified contactless L1 certification testing.

Read more

CEN TS 16794-2 Test Solutions

Automated solutions for testing according ISO and CEN standards.

Read more

  • Class A amplifier
  • Gain/output power:
    • 50 W nominal (43 dBm @ input 0 dBm)
    • 100 W maximum (50 dBm @ input +7 dBm)
    • gain correction +/-6 dB in steps of 0.1 dB
  • Power consumption: < 400 W
  • Band width: 10 MHz - 100 MHz (typ.)
  • Distortion: typically 1% @ Pout = 50W
  • Ambient temperature range: 10 °C …. 40 °C
  • Controlled operating temperature: internally 60 °C
  • Integrated passive power attenuator (10 dB/150 W), switchable
  • Preparation for 19“ rack with mounting rails (3U height)
  • Output switchable to front/rear jack
  • USB 2.0 Interface
  • Fully USB controlled
    • Muting function
    • Attenuation on/off
    • Switchable output front/rear
    • Gain control
    • Temperature control
    • Service interface
    • Adjustment
  • Compliance:
    • Safety EN 61010-1: 2010
    • EMC EN 61326-1: 2013, Class B
    • FCC CFR 47 Part 15 Subpart B
  • Dimensions:
    • W x D X H: 450 mm x 315 mm x 134 mm
