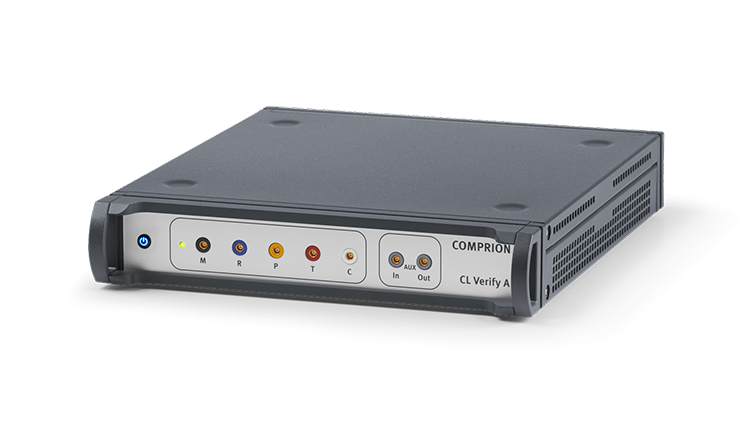

CL Verify A

Contactless testing tool for validation of contactless interface design

Simulates contactless cards, readers and tags

Traces contactless communication

Supports
— NFC Forum,
— EMVCo,
— ISO/IEC 14443,
— ISO/IEC 18092,
— ISO/IEC 15693,
— Car Connectivity Consortium

Measures the magnetic vector field

Examines NFC reader sensitivity

Validation of Contactless Interfaces

CL Verify A is the core device of COMPRION's modular solution designed especially for the development of the contactless interface of NFC-enabled (mobile) devices as well as for contactless smart cards and tags. It offers a robust set of features, encompassing contactless communication simulation, monitoring (sniffing), and capturing functionalities. CL Verify A provides extensive support for industry standards including NFC Forum, EMVCo, ISO/IEC 14443, ISO/IEC 18092, and ISO/IEC 15693. Equipped with a digital storage oscilloscope and vector field measurement capabilities, it empowers users with precise signal analysis and evaluation of magnetic fields. The optional integration of a cost-effective Dobot MG400 robot allows for the automatic, fast positioning of the antennas required for analog tests.

CL Verify A provides comprehensive testing and evaluation of various NFC-equipped products, such as car door handles, contactless readers, contactless cards, wearables, and more, to ensure their market readiness.

Use Cases Include:

Execution of conformance test cases, aligning with NFC Forum, GSMA TS.27 NFC Handset Test Book, and EMVCo standards.
Development and debugging of NFC-enabled devices including contactless cards, tags, terminals/readers, frontends (CLFs), and IoT modules with NFC interface.
Analysis of NFC fields, optimization of NFC antenna integration.
Interoperability testing of contactless interfaces.
Quality assurance measures.

COMPRION Test Solutions Using CL Verify A

NFC Forum Test Solutions

Automated test solutions for NFC Forum-approved compliance testing.

EMVCo L1 Test Solutions

Test solutions for EMVCo qualified contactless L1 certification testing.

CEN TS 16794-2 Test Solutions

Automated solutions for testing according ISO and CEN standards.

CCC Digital Key Test Solution

Car Connectivity Consortium Digital Key™ End-to-End Interoperability

Technical Information

Output Channel

T (Terminal): Reader simulation up to 30 dBm
- ISO/IEC 14443, ISO/IEC 18092, ISO/IEC 15693
- NFC Forum, EMVCO
C (Card): Card simulation
- ISO/IEC 14443, ISO/IEC 18092, ISO/IEC 15693
P (Preamplifier): for external RF power amplifier
- Up to 22A/m with CL Amplify (400w) depending on antennas, step width of field strength <0.5 A/m
- Aux: Trigger out (1 V level at 50 Ohm)

Input Channel

M / R: Measuring input for NFC signals
- High dynamic range
- Automatic Gain Control
- Carrier frequency synchronization
- Resolution per sample: 12 bit
- Record length up to 32 M sample points
- Monitoring of bit rates from 106 kbit/s
- up to 848 kbit/s
- Time measurement resolution: 1 / 54 MHz

Dimensions
