File Tree Express

The easy-to-use software for viewing and editing data fields stored on smart cards

  • Supports 2G and 3G technologies with SIM, R-UIM, USIM, CSIM, and ISIM applications
  • Scans smart cards and saves their contents on disk for offline usage
  • Enables you to compare file trees and create your own file trees and scripts
  • Use Cases
  • Available Software Packages
  • Accessories

File Tree Express can be used for:

  • Scanning of smart cards
  • Creation of customized file trees
  • Updating of EF contents
  • Copy / paste of single EFs or a range of EFs to and from different file trees
  • Translation of EF contents
  • Comparison of different file trees
  • Creation of command sequences
  • Creation of personalization scripts
  • Viewing of APDUs during card scan or data update
  • Resizing of EFs
  • Export / import of file trees to/from different file formats (XML, Excel, UXP)

File Tree Express also offers:

  • Find / look-up functionality
  • Wizard for creating new files
  • Support of any PC/SC-compliant smart card reader
  • Comprehensive interface for viewing file access conditions
Icon
Support

Do you have any questions regarding our systems, technical issues or product related topics? Our support team will be quick to help you with straightforward assistance.

Read more

File Tree Express is available in two different versions:

File Tree Express Basic V2.1
Prod. No.: 20200107

File Tree Express Professional V2.1
Prod. No.: 20200108

File Tree Express Basic V2.1 File Tree Express Professional V2.1
Features
Scan Smart Card File Trees (SIM, R-UIM, USIM, ISIM, CSIM)
Edit File Trees (SIM, R-UIM, USIM, ISIM, CSIM)
Open/Save File Trees From/To Disc
Find/Look-Up Files
Copy/Paste EFs
EF Translator
File Tree Compare
Command Sequencer
APDU Viewer
Create/Delete File (EF, DF)
Resize File
Excel Import/Export
SIMpml (UXP) Import/Export (card body)
Create Personalization Scripts

To order one of the following update software packages please contact sales@comprion.com

  • File Tree Express Update (from Basic V2.0 to V2.1)
    Prod. No.: 20200109U

  • File Tree Express Update (from Professional V2.0 to V2.1)
    Prod. No.: 20200110U

For the operation of the File Tree Express software a PC/SC card reader is required:

  • Card Reader
    Prod. No.: 20100104 (see Accessories)

Accessories

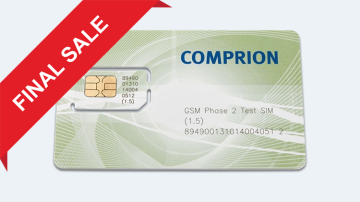

8K GSM Phase 2 Test SIM
Art. No. 10208007


  • Phase 2 data fields
  • 3 V / 5 V technology
  • Temperature –25°C to +85°C
  • XOR test algorithm
  • 8 K EEPROM
  • PIN 1 disabled
  • 2FF (plug-in)

Show details

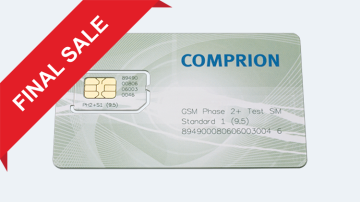

32K GSM Phase 2+ Standard 1 Test SIM
Art. No. 10332001


  • Phase 2+ data fields
  • 3 V / 5 V technology
  • Temperature –25°C to +85°C
  • XOR test algorithm
  • 32 K EEPROM
  • PIN 1 enabled
  • Creation of new data fields allowed
  • 2FF (plug-in)

Show details

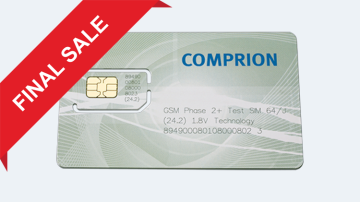

64K/J GSM Phase 2+ 1.8 V Test SIM
Art. No. 10332005


  • Phase 2+ data fields
  • 1.8 V / 3 V / 5 V technology
  • Temperature –25°C to +85°C
  • Java Card™
  • XOR test algorithm
  • 64 K EEPROM
  • PIN 1 disabled
  • Creation of new data fields allowed
  • 2FF (plug-in)

Show details

64K/J Test (U)SIM – Plug-in
Art. No. 10432002


  • UICC multi-application platform
  • Two applications: Test SIM and Test USIM
  • Based on Java Card™ Open Platform technology
  • 1.8 V / 3 V / 5 V
  • Temperature –25°C to +85°C
  • 64K EEPROM
  • APIN 1 disabled
  • GSM XOR/3G test algorithm
  • Creation of new data fields allowed
  • 2FF (plug-in)

Show details

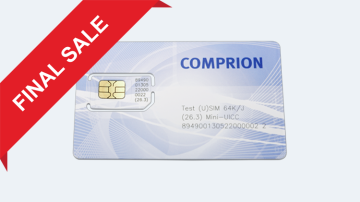

64K/J Test (U)SIM 1.8 V – Mini-UICC
Art. No. 10432004


  • UICC multi-application platform
  • Two applications: Test SIM and Test USIM
  • Based on Java Card™ Open Platform technology
  • 1.8 V / 3 V / 5 V
  • Temperature –25°C to +85°C
  • 64K EEPROM
  • APIN 1 disabled
  • GSM XOR/3G test algorithm
  • Creation of new data fields allowed
  • 2FF (plug-in), 3FF (mini-UICC)
  • Repluggable card

Show details

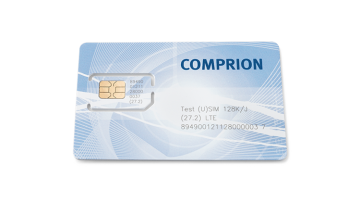

128K/J LTE Test (U)SIM – Plug-in
Art. No. 10432005


  • UICC multi-application platform
  • New LTE data fields implemented
  • Three applications: Test SIM, Test USIM, Test ISIM
  • Based on Java Card™ Open Platform technology
  • 1.8 V / 3 V / 5 V
  • Temperature –25°C to +85°C
  • 128K EEPROM
  • APIN 1 disabled
  • GSM XOR/3G test algorith
  • Creation of new data fields allowed
  • 2FF (plug-in)

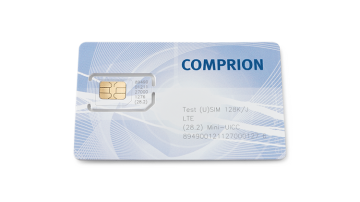

128K/J LTE Test (U)SIM – Mini-UICC
Art. No. 10432006


  • UICC multi-application platform
  • New LTE data fields implemented
  • Three applications: Test SIM, Test USIM, Test ISIM
  • Based on Java Card™ Open Platform technology
  • 1.8 V / 3 V / 5 V
  • Temperature –25°C to +85°C
  • 128 K EEPROM
  • APIN 1 disabled
  • GSM XOR/3G test algorithm
  • Creation of new data fields allowed
  • 2FF (plug-in), 3FF (mini-UICC)
  • Repluggable card

Show details

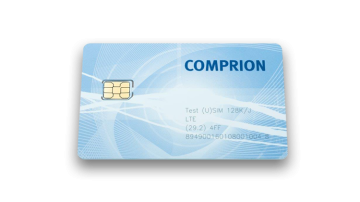

128K/J LTE Test (U)SIM – 4FF
Art. No. 10432007


  • UICC multi-application platform
  • New LTE data fields implemented
  • Three applications: Test SIM, Test USIM, Test ISIM
  • Based on Java Card™ Open Platform technology
  • 1.8V / 3V / 5V
  • Temperature –25°C to +85°C
  • 128K EEPROM
  • APIN 1 disabled
  • GSM XOR/3G test algorithm
  • Creation of new data fields allowed
  • 4FF (nano)

Show details

64K/J LTE Test (U)SIM – Plug-in – M2M UICC
Art. No. 10432008


  • UICC multi-application platform
  • New LTE data fields implemented
  • Two applications: Test SIM, Test USIM
  • Based on Java Card™ Open Platform technology
  • 1.8 V / 3 V / 5 V
  • Temperature (TB) –40°C to +105°C
  • 64K EEPROM
  • APIN 1 disabled
  • GSM XOR/3G test algorithm
  • Creation of new data fields allowed
  • 2FF (plug-in)

Show details

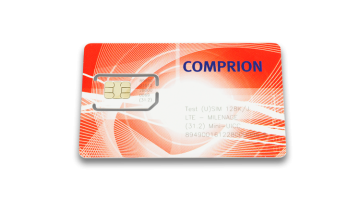

128K/J LTE MILENAGE Test (U)SIM – Mini-UICC
Art. No. 10532000


  • UICC multi-application platform
  • New LTE data fields implemented
  • Three applications: Test SIM, Test USIM, Test ISIM
  • Based on Java Card™ Open Platform technology
  • 1.8 V / 3 V / 5 V
  • Temperature –25°C to +85°C
  • 128 K EEPROM
  • APIN 1 disabled
  • MILENAGE algorithm
  • Creation of new data fields allowed
  • 2FF (plug-in), 3FF (mini-UICC)
  • Repluggable card

Show details

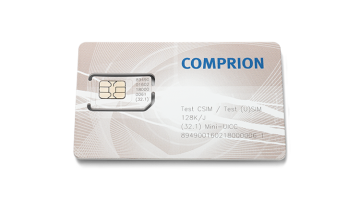

128K/J Test CSIM/Test (U)SIM – Mini-UICC
Art. No. 10542002


  • UICC multi-application platform
  • Five applications: Test R-UIM, Test CSIM, Test SIM, Test USIM, Test ISIM
  • Based on Java Card™ Open Platform technology
  • 1.8 V / 3 V / 5 V
  • Temperature –25°C to +85°C
  • 128K EEPROM
  • APIN 1 disabled
  • Cave/GSM XOR/3G test algorithm
  • Creation of new data fields allowed
  • 2FF (plug-in), 3FF (mini-UICC)
  • Repluggable card
128K/J Test CSIM/Test (U)SIM – 4FF
Art. No. 10542003


  • UICC multi-application platform
  • Five applications: Test R-UIM, Test CSIM, Test SIM, Test USIM, Test ISIM
  • Based on Java Card™ Open Platform technology
  • 1.8 V / 3 V / 5 V
  • Temperature –25°C to +85°C
  • 128K EEPROM
  • APIN 1 disabled
  • Cave/GSM XOR/3G test algorithm
  • Creation of new data fields allowed
  • 4FF (nano)

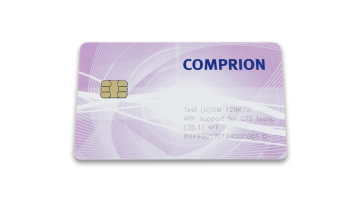

128K/J LTE CTS Test (U)SIM – 4FF
Art. No. 10432009


  • ARF support for CTS tests
  • UICC multi-application platform
  • New LTE data fields implemented
  • Three applications: Test SIM, Test USIM, Test ISIM
  • Based on Java Card™ Open Platform technology
  • 1.8 V / 3 V / 5 V
  • Temperature –25°C to +85°C
  • 128K EEPROM
  • APIN 1 disabled
  • GSM XOR/3G test algorithm
  • Creation of new data fields allowed
  • 4FF (nano)

Show details

128K/J LTE MILENAGE Test (U)SIM - 4FF
Art. No. 10532001


  • UICC multi-application platform
  • New LTE data fields implemented
  • Three applications: Test SIM, Test USIM, Test ISIM
  • Based on Java Card™ Open Platform technology
  • 1.8 V / 3 V / 5 V
  • Temperature –25°C to +85°C
  • 128K EEPROM
  • APIN 1 disabled
  • MILENAGE algorithm
  • Creation of new data fields allowed
  • 4FF (nano)

Show details
